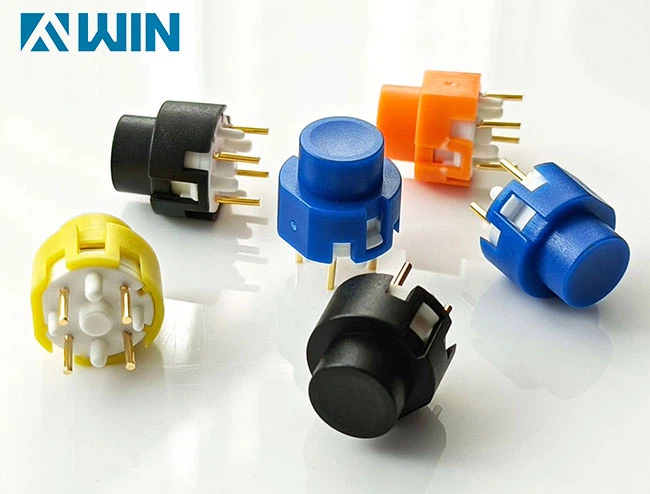

TS4 PCB Push Button Switch

The TS4 Series PCB Push Button Switch is an integral component for modular synthesizers and a variety of electronic devices. Known for its durability, reliability, and tactile feedback, this switch is designed to meet the demands of both hobbyists and professional electronic engineers.

Specifications and Features

Type: SPST (Single Pole Single Throw)

Action: Momentary – the switch is only active (ON) when pressed and returns to its default state (OFF) upon release.

Configuration: OFF – (ON) – it remains OFF until pressed, momentarily switching to ON.

Mounting Style: Through-hole, which ensures robust mechanical stability on printed circuit boards (PCBs).

Actuation Force: Typically ranges between 160gf to 260gf, providing a responsive and satisfying tactile feedback.

Dimensions: Compact design suitable for densely populated circuit boards common in modular synthesizers.

Material: High-quality construction with a black round actuator, offering both durability and a sleek appearance.

Operating Life: High longevity, with a lifespan typically ranging from 100,000 to 1,000,000 cycles.

Role in Modular Synthesizers

Music Thing Modular Radio Music:

Sample Navigation: The TS4 switch allows users to cycle through various audio samples stored on a microSD card, similar to tuning a radio.

Playback Control: It enables the engagement of different playback modes, such as looping or random selection, allowing for versatile audio manipulation.

Parameter Adjustment: Momentary presses adjust playback parameters dynamically, giving users fine control over sound output.

Music Thing Modular Chord Organ:

Chord Selection: Instant chord changes facilitated by the TS4 switch allow for smooth transitions during performances or recording.

Function Activation: It temporarily activates harmonic or modulation functions, adding expressiveness to the musical output.

Programming Interface: The switch is used to enter and navigate programming modes, enabling the customization of chord sequences and settings.

Advantages

Reliability: The TS4 Series switches are known for their consistent performance, crucial for live performances and studio settings where reliability is key.

Tactile Feedback: Provides clear, responsive tactile feedback, ensuring users can confidently interact with their synthesizer without visual confirmation.

Compact Design: The small footprint allows for easy integration into densely populated synthesizer panels, optimizing space usage.

User-Friendly: The momentary action offers quick and precise control, essential for real-time performance adjustments.

Applications Beyond Music Thing Modular

The utility of the TS4 Series switches extends beyond modular synthesizers to various electronic applications:

Consumer Electronics: Used in remote controls, game controllers, and other devices requiring reliable momentary switches.

Industrial Controls: Utilized in machinery and equipment where precise and reliable momentary switches are necessary for control interfaces.

Other Synthesizers and Audio Equipment: Employed for triggering, mode switching, and parameter adjustments in various electronic instruments and effects units.

Conclusion

The TS4 Series PCB Push Button Switch is a vital component in the realm of modular synthesizers and beyond, providing robust, responsive, and intuitive control. Its implementation in modules like the Music Thing Modular Radio Music and Chord Organ showcases its effectiveness in enhancing user interaction and musical expression. With its durable construction, reliable performance, and excellent tactile feedback, the TS4 switch remains a top choice for both electronic enthusiasts and professionals.
