TV Switcher Illuminated Push Button
This is 15.0x15.0mm illuminated push buttons for pro audio and video equipment, The illuminated push button switch featuring a modern appearance with customizable backlit illuminated buttons, illuminated control panel button illumination enhances for context and function indication, all buttons...
Description
This is 15.0x15.0mm illuminated push buttons for pro audio and video equipment,
The illuminated push button switch featuring a modern appearance with customizable backlit illuminated buttons, illuminated control panel button illumination enhances for context and function indication, all buttons are illuminated with a selection of colorful leds, which dynamically change to indicate context, the illuminated and customizable button enable perfect visual cues.
The PCB mounted illuminated push button switches offers momentary actions and tactile feedback, it is also compatible with 12x12mm and 16mm as well as 26x15mm cap sizes.
Specifications
Part No：TS15-10W57WTX | Size：15x15x12.7mm |
Circuit：SPST | Rated：12VDC ,50mA |
Contact Resistance：100mΩ（max） | Insulation Resistance：100MΩ（min） |
Withstand Voltage：250VAC for 1 minute | Operation Force：250±50gf |
Total Travel：0.4±0.15mm | Soldering Temperature：260℃ for 5 seconds |
Lifespan：500,000 cycles | Using Temperature：+10℃ ~+ 60℃ |

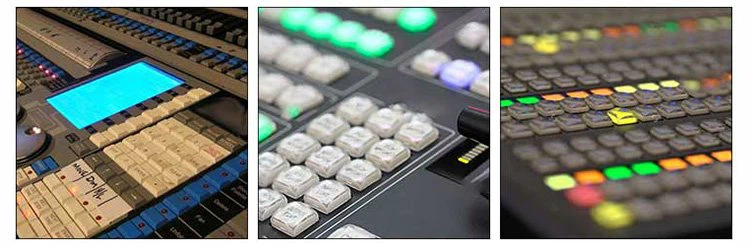

Application Fields
Typical applications include stadiums, broadcast facilities, production houses, corporate studios, houses of worship and educational media,
digital Control panel electronic device, video and audio mixer switch of Television Broad
