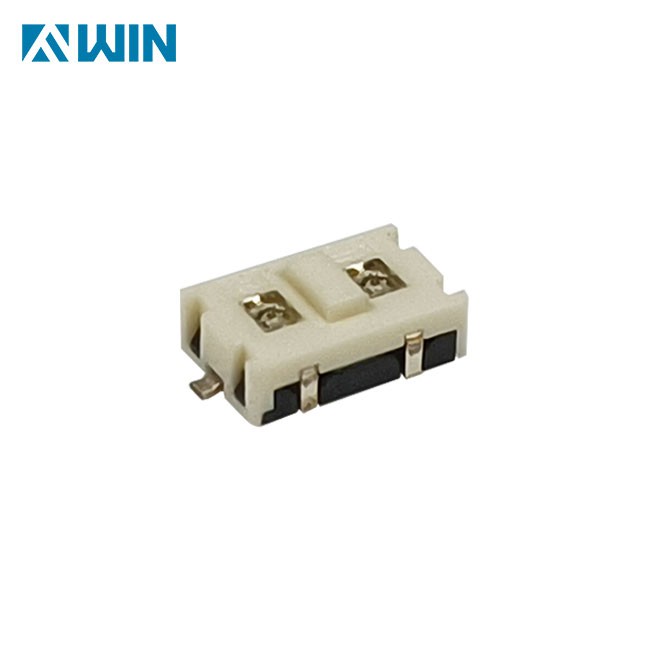

Surface Mount LED Tact Switch

Mini Bi-Colored SMT Illuminated Tactile switch

The TS68 series illuminated tactile switch is a SPST configuration and momentary function LED tact push button switch,it’s a surface mount terminal,by the way,it offers with bi-colored and single LED colors options.

The dual LED is available for red-green,red-blue,red-yellow and others,the mini SMT design illuminated tact switch features of sub-miniature size and measures of 6.8mm x 4.5mm x 2mm.

The mini size and surface mount design is easy for mounting and soldering,at present,we don’t have any caps for the model,it’s our minimum illuminated tact switch with LED in our illuminated button category.

Specifications

Electrical Ratings :50mA @ 12VDC

Electrical Life :500,000 cycles typical

Contact Resistance:50mΩ

Actuation Force:160+/-80gf

Travel:0.2mm

Product Applications

1. audio/ visual

2. computer/servers/peripherals

3. consumer electronics applications

4. medical devices

5. telecommunications equipment

6. testing and instrumentation

Product Dimension

Other Illuminated Tact Switch

Packing and Shipment

1. Plastic Conta packing way

2. Tape&Reel packing

3. Following to the requirements of customers

4. Please provide your FedEx/ UPS/ TNT/ DHL account number for shipping,if not,we need to charge the freight to your company

Our Facility

Owns full automatic machinery equipment and advanced technology in developing led tact switches and complete quality control system.

Our Advantages

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then one decades in switch manufacturing.

3. Many invention patents

4. Assembly process in 8,00 grade dust-free workshop.
