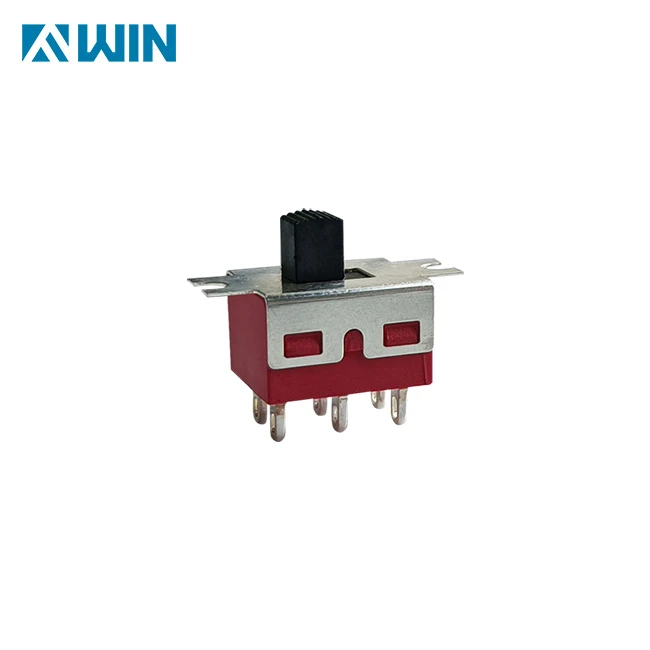

SPDT On-On Slide Switch

The SL11 series slide switches is a through hole,are PC Board mountable or panel mountable. They come in single or double pole options and have multiple actuator height options.

It has a SPDT configuration. This slide switch has a minimum operating temperature of -30 °C and a maximum of 65 °C. The SL11 slide switch has a PC pin termination style. This product is available with different handle length, 12.7 mm length and 9.53 mm deep. The maximum AC voltage rating is 20 VAC and the maximum DC voltage rating is 20 VDC.

SPECIFICATIONS
Contact Rating: Gold - 0.4VA 20V AC or DC
                  Silver - 5A 120VAC, 2A 250VAC
Electrical Life: 30,000 Make-and-Break Cycles at Full Load
Contact Resistance: 10mΩ Max. Typical at 2-4VDC
                                    100mA for Both Silver and Gold Plated Contacts
Insulation Resistance: 1,000MΩ Min.
Dielectric Strength: 1,000V RMS at Sea Level
Operating Temperature: -30°C to 85°C

MATERIALS
Housing: Stainless Steel
Slide Handle: Nylon UL 94HB
Contacts: Silver or Gold Plated Copper Alloy

Applications for this switch include:

· Consumer electronics

· Instrumentation

· Computer servers/peripherals

· Test/measurement

Our Customers

Our customers are mostly from Europe and America,as well as Asia,whose are the pro audio and video makers and security devices as well as industries control equipment.

So our illuminated switches has widely applications for various.

FAQ

Q: Are you a factory?

A:Yes,our factory locates in Dongguan

Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q:How long is your lead time?

A:About 15-20 workdays if you want the customized types

Q:Which payment do you support?

A:we accept TT,Paypal,cash etc.
