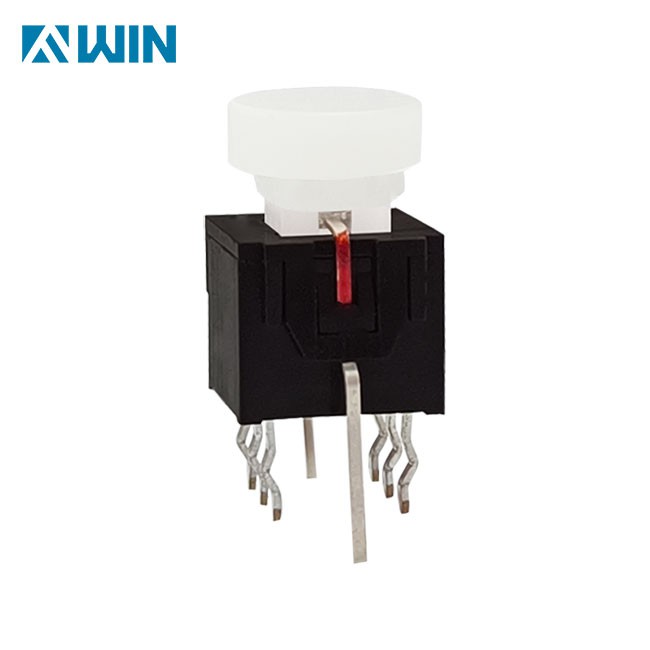

Latched Illuminated Tact Push Switch
FVWIN TS85 series illuminated tact push button switch are available and comes in latching and momentary function options,it offers multiple caps options,such as diameter of 7.5mm,square 10mm caps.it has a range applications for audio and video,home automation,industrial controls and security device.
Description
FVWIN TS85 series Latched Illuminated Tact Push Switch are available and comes in latching and momentary function options,it offers multiple caps options,such as diameter of 7.5mm,square 10mm caps.it has a range applications for audio and video,home automation,industrial controls and security device.
The cap can be made with engraved symbols and customized any logo as your request, Supports 10*10mm cylinder and 7.5mm caps, and custom engraving of patterns/symbols on the cap. The etched cap enhances illumination effect and allows brand customization, meeting personalized design requirements of different products.
that's our services
Precise Compact Size (7.5*8.5mm)
Optimized miniaturized design saves PCB space, making it ideal for space-constrained devices such as smart home controllers, portable electronics, and industrial control panels. It supports both vertical snap-in mounting and hand welding, requiring no additional mounting hardware, simplifying assembly processes and reducing production costs.
Reliable Latching Function
Features stable push-to-lock/push-to-unlock mechanism that maintains circuit on/off state without continuous pressure, avoiding accidental disconnection. Suitable for scenarios requiring long-term circuit conduction, such as equipment start-stop control, power switches, and mode selection, ensuring operational stability and user convenience.
Rich LED Color Options
Provides single-color (red, green, blue, yellow, white) and dual-color LED variants, with low/high intensity options available. The LED provides clear visual feedback to indicate device working status (e.g., power on/off, mode switching, fault alert), enhancing user interaction experience and reducing misoperation risks.
Durable Long-Life Performance
Boasts exceptional mechanical life (minimum 10,000 cycles, up to 500,000 electrical lifecycles for high-end models) and reliable electrical performance. Withstands repeated operations in harsh environments, reducing product maintenance and replacement costs for end-users.
Products Specification
| Circuit: | DPDT |
| Latching Options: | Momentary / Self locking |
| Cap Size: | Diameter 7.5mm |
| Mounting Style: | Through-Hole |
| LED Options: | Single LED colors and Bi-Color LED Option |
| Cap Options: | Multiple Cap with Laser Etching Option, Four Frame Options |
| Product Category: | Push Button Switch |
Product View
