3 Pin Right Angle Slide Switch

This is Compact size, light weight ON-OFF mini 1P2T two position slide switch with three pin, it has SPDT configuration and PCB mount ways, SS-12D06 slide switch SPDT Slide Switch with right angle terminals, it is great for use as an ON/OFF button or general control switch and small power electronic projects.

Specifications

Model: SS12D06

Dimension：12.7x6.8 mm

Circuit：1P2T

Rating：0.3A 50V DC

Operating force：250gf±100gf

Operating Life：10,000 cycles

Product Name:2 Position 3 Pin Slide Switch

Type:1 Pole 2 Throw (Single Pole Double Throw)

Terminal Length: 5mm

Pin Pitch:4.7mm

Main Body Size:12.7x6.8x6.3mm(L*W*H)

Material(External):Plastic, Metal

Main Colour:Silver Tone, Black

Features

Ultra small SPDT slide switches.

Fine workmanship and good performance.

Easy to connect,Durable in use.

Contact Form:Single Pole, Double Throw (SPDT)

Dimensions

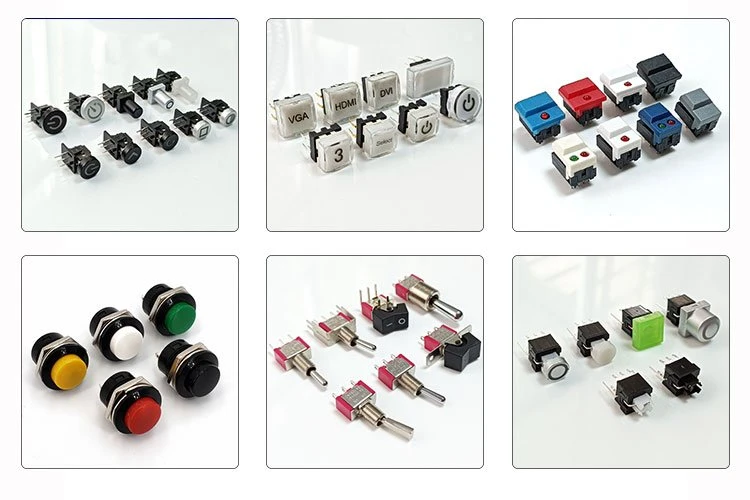

Hot selling products
