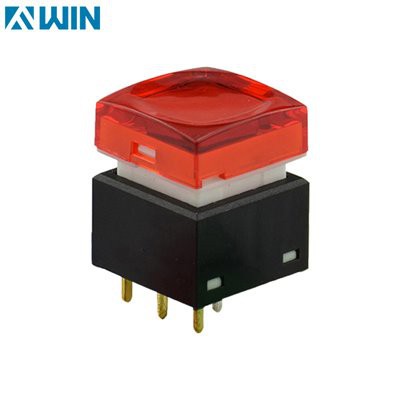

15*15 PCB Illuminated Push Button

This is 15.0*15.0mm Illuminated Push Button Switch, it is PCB mount type button,This PB30A Series illuminated pushbutton switch is available to perform momentary or latching functions, the led color is available with single and bi-color led, the total travel is 2.2mm and operation force is 200gf. It has tactile and silent feedback when you push it, the typical application is audio/visual equipment, ·Kiosk panels, Consumer electronics, Vending machines, Instrumentation and medical equipment.

Specifications

Switch Operation: Momentary or latching

Mounting Type:PCB

Illuminated: Yes

Contact Configuration: Single Pole Double Throw (SPDT)

LED Colour:Green/white/red/blue/yellow

Actuator Colour:Transparent

Contact Current Rating: 5A 250VAC;0.4A 28VDC

Actuator Type: Button

Terminal Type: Through Hole

Actuation Force::200± 100gf

Total Travel: 2.2mm± 0.5mm

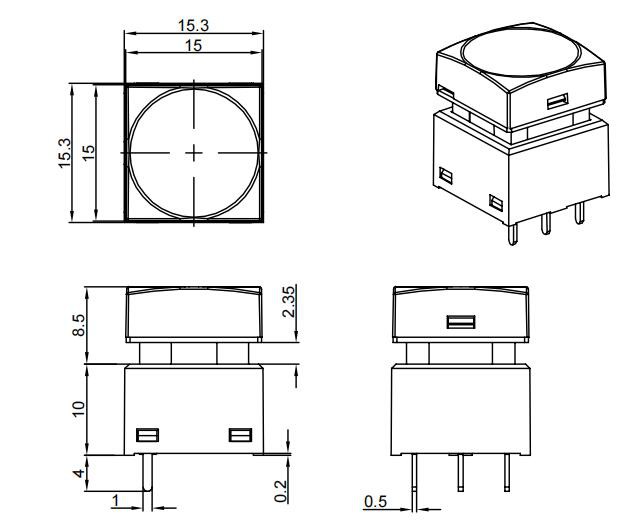

Dimension

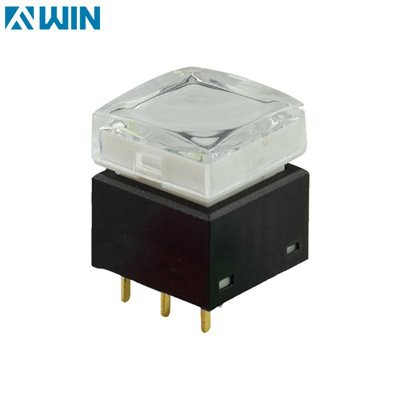

Product View

Applications

broadcast vision mixer, Video switcher, audio and video production switcher of television broadcast, pro digital Control panel electronic device, video and audio mixer switch of Television Broad, TV video recording switcher system

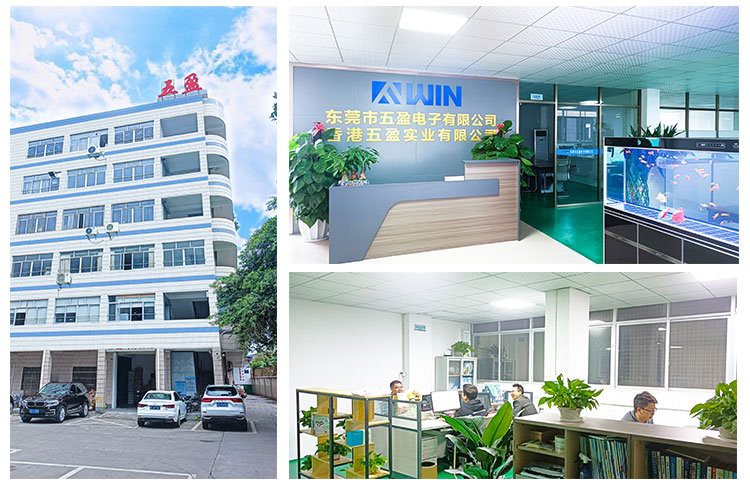

About us
