What Is The Description Of Metal Pushbutton Switch?

A metal push button switch is an electromechanical device designed to control the flow of electricity in a circuit when activated by a physical press. These switches are known for their robust design, durability, and aesthetic appeal, making them an essential component in numerous applications across industrial, commercial, and consumer electronics.

Overview of a Metal Push Button Switch

Metal push button switches are characterized by their sturdy metal housing, reliable switching mechanism, and, often, integrated features like LED illumination. Their versatility and adaptability stem from the variety of sizes, styles, and electrical configurations available, ensuring compatibility with different environments and usage scenarios.

Key Features of a Metal Push Button Switch

1. Construction and Materials

The hallmark of a metal push button switch is its durable construction:

Metal Housing: Typically made from stainless steel, brass, or aluminum alloy, offering exceptional resistance to wear, corrosion, and mechanical damage.

Sealing Components: Rubber or silicone gaskets are incorporated to achieve water, dust, and moisture resistance, essential for outdoor or industrial applications.

2. Types of Actuation

Metal push button switches come in two main actuation types:

Momentary: The switch activates only while being pressed and deactivates upon release, commonly used in reset buttons or horns.

Latching: The switch stays in its new state (ON or OFF) after being pressed, ideal for power control or toggle operations.

3. Illumination

Many modern metal push button switches feature LED illumination for visual feedback or design purposes:

Integrated LEDs: Single-color, bi-color, or RGB lighting options provide customizable lighting effects.

Applications: Illumination can be used to indicate the switch's status (e.g., ON/OFF), enhance visibility, or add an aesthetic touch.

4. Electrical Ratings

Metal push button switches are engineered for various voltage and current ratings, from low-power signal circuits to high-power industrial systems.

Typical Ratings:

Signal switches: 12V to 24V, with current ratings in milliamps.

Power switches: Up to 250V AC or 30V DC, handling currents of several amps.

5. Durability and Longevity

These switches are designed for extensive operational lifespans, often rated for millions of actuation cycles, making them highly reliable for long-term use in demanding environments.

Structural Components

A metal push button switch consists of several key parts:

Actuator/Cap

Material: Stainless steel or anodized aluminum for wear resistance.

Shape: Available in flat, domed, or raised profiles for different ergonomic and aesthetic requirements.

Functionality: Transfers mechanical force to the internal switching mechanism.

Switching Mechanism

Converts the mechanical press into an electrical signal.

Includes contact points made from conductive materials like silver or gold to ensure low resistance and reliability.

Available in momentary or latching designs, based on application needs.

Illumination System (Optional)

LED Placement: Either integrated into the actuator or surrounding it in a translucent ring.

Voltage Compatibility: Operates on a specified voltage range, typically 3V, 6V, 12V, or 24V.

Housing

Protects internal components from external damage and environmental factors.

Offers threaded or snap-fit designs for secure panel mounting.

Terminals

Provide the electrical connection to the circuit.

Types include solder lugs, screw terminals, and PCB pins.

Sealing Components

Gaskets or O-rings enhance resistance to dust, water, and other contaminants.

Ensure IP ratings, such as IP65, IP67, or higher, for use in outdoor or industrial environments.

Specifications and Variants

1. Sizes

Metal push button switches come in a variety of sizes to suit different applications:

Standard Sizes: Common panel cutouts include 12mm, 16mm, 19mm, 22mm, 25mm, and 30mm.

2. Electrical Configurations

Contact Forms: Single-Pole Single-Throw (SPST), Single-Pole Double-Throw (SPDT), and more.

Current/Voltage Handling: Designed for both low-voltage signal control and high-current power circuits.

3. Mounting Options

Panel Mount: Threaded housing for secure installation.

PCB Mount: Terminals designed for direct integration into printed circuit boards.

4. Customizable Features

Actuator Symbols: Icons or text (e.g., ON/OFF, power symbol) can be laser-etched or engraved.

Color Options: LEDs and actuator surfaces can be customized for branding or functional purposes.

Applications of Metal Push Button Switches

Metal push button switches are widely used in various industries due to their durability, reliability, and versatility.

1. Industrial Automation

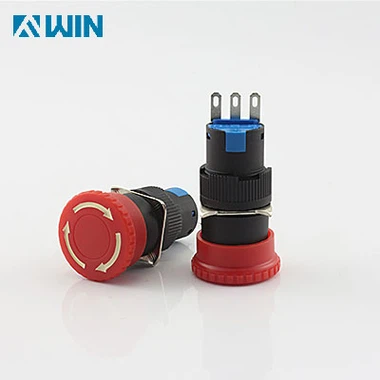

Used for machine start/stop controls, emergency stop buttons, and operator interfaces.

Rugged construction withstands harsh environments with high vibrations, dust, and moisture.

2. Automotive

Found in dashboard controls, door locks, and ignition systems.

LED illumination enhances visibility in low-light conditions.

3. Consumer Electronics

Common in household appliances like coffee machines, blenders, and gaming devices.

Sleek design and LED options complement modern aesthetics.

4. Marine and Outdoor Equipment

IP-rated switches are ideal for marine controls, outdoor kiosks, and weather-exposed systems.

5. Medical Equipment

Used in diagnostic devices, monitors, and surgical instruments for precise control.

Advantages of Metal Push Button Switches

Durability

Sturdy metal construction resists wear, corrosion, and impacts.

Suitable for environments with high humidity, dust, or exposure to chemicals.

Aesthetic Appeal

Sleek, modern design with optional LED illumination adds a professional look.

Versatility

Available in numerous sizes, actuation types, and electrical configurations.

Suitable for a wide range of industries and applications.

Easy Installation

Threaded bodies and standardized panel cutouts simplify mounting.

Customization Options

Personalizable features like actuator symbols, LED colors, and finishes.

Challenges and Considerations

Cost

Metal push button switches are more expensive than plastic counterparts.

Weight

Heavier than plastic switches, which might be a limitation in weight-sensitive applications.

Complexity

LED integration and sealing requirements may increase design complexity.

Compatibility

Ensure proper electrical ratings and mounting sizes for specific applications.

Future Trends in Metal Push Button Switch Design

Enhanced LED Integration

Advanced LED designs with dynamic RGB control for multi-functional feedback.

Smart Switches

Integration with IoT systems for remote control and monitoring.

Eco-Friendly Materials

Adoption of sustainable and recyclable materials for environmentally conscious applications.

Miniaturization

Compact designs for space-constrained applications in consumer electronics and medical devices.

Metal push button switches are a cornerstone of modern control systems, offering unparalleled reliability, functionality, and design flexibility. Their robust construction and customizable features make them an excellent choice for demanding applications, ensuring they remain a vital component in numerous industries for years to come.
