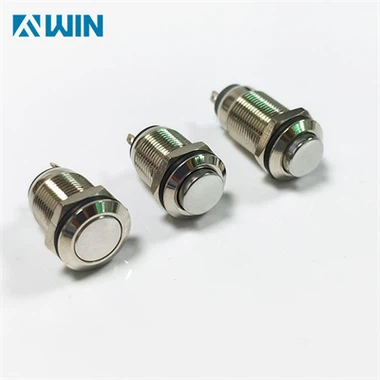

What IP Rating Is Typical For Dustproof And Waterproof Metal Push Button Switch

When it comes to dustproof and waterproof metal push button switches, several IP (Ingress Protection) ratings are commonly associated with them, depending on the intended application and the level of protection required.

IP65
The IP65 rating is quite common for many metal push buttons. The "6" in IP65 indicates complete protection against dust ingress. This means that no dust particles, regardless of their size, can enter the switch housing. For applications where dust is a concern, such as in industrial settings with a lot of particulate matter in the air, an IP65-rated switch ensures that internal components remain clean and free from dust-related damage, which could otherwise lead to malfunctions. The "5" denotes protection against water jets. Switches with this rating can withstand water projected from a nozzle in any direction without harmful effects. This makes them suitable for outdoor applications where they might be exposed to rain or where they could be cleaned with a water hose. For example, they can be used in control panels of outdoor machinery or in areas where occasional water splashing occurs.

IP67
IP67 is another frequently seen rating for dustproof and waterproof metal switches. Similar to IP65, the "6" here also ensures total dustproofing. The "7" in IP67 means that the switch can be temporarily immersed in water up to a depth of 1 meter for 30 minutes without water causing any damage to its internal components. This rating makes it ideal for applications where there is a risk of the switch being accidentally submerged, such as in some marine applications or in areas prone to flooding. For instance, in the control systems of small boats or in certain industrial equipment that may be exposed to water during operation or cleaning processes in wet environments.

IP68
Although less common but still used for specialized applications, IP68-rated metal push button switches offer the highest level of dust and water protection among these ratings. The "6" ensures complete dust protection, and the "8" indicates that the switch can be continuously immersed in water at a specified depth (usually much deeper than 1 meter, depending on the manufacturer's specifications) without any water ingress. These metal switches are often used in extreme environments, such as underwater equipment like submersible pumps or in some high - end industrial applications where the switch may be constantly exposed to water or high - pressure water jets. For example, in the control panels of equipment used in car washes where high - pressure water is used for cleaning or in deep - sea exploration devices where the switches need to function properly even when submerged at great depths.

The option of IP rating for a dustproof and waterproof metal push button switch depends on the specific environmental conditions and usage scenarios. IP65 is suitable for general outdoor and light industrial applications with some water and dust exposure, IP67 for more serious water immersion risks, and IP68 for extreme underwater or high - pressure water - exposed applications.
