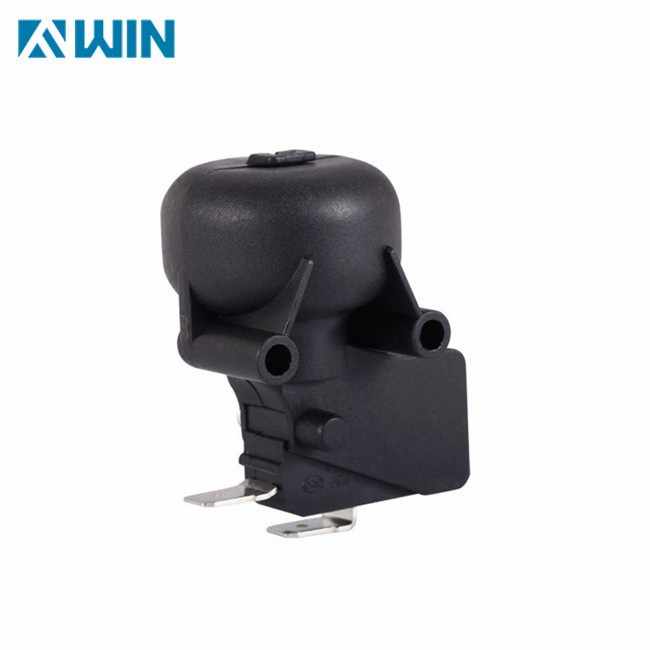

Tip Over Micro Switch

A tip-over micro switch, also known as a tip-over switch or safety tilt switch, is a specialized type of micro switch designed to detect and respond to the orientation of a device. When the device is tilted or tipped beyond a certain angle, the tip-over switch activates to interrupt the electrical circuit, thereby shutting off the device or triggering an alarm. This safety mechanism is crucial in preventing accidents and ensuring user safety.

Key Features and Construction

Actuator Mechanism: The tip-over switch typically features a mechanical actuator that moves when the device tilts. Common designs include ball bearings that roll to activate the switch or pendulum mechanisms that swing to change the switch state.

Contacts: Inside the switch, there are electrical contacts that open or close the circuit based on the position of the actuator.

Housing: The switch is enclosed in a durable housing to protect the internal components from dust, moisture, and mechanical damage.

Operational Mechanism

The operation of a tip-over switch is straightforward:

Normal Position: When the device is in its intended upright position, the actuator keeps the contacts in a state that allows the circuit to remain closed (connected) and the device to operate normally.

Tilted Position: If the device tilts or tips beyond a predefined angle (typically 30 to 45 degrees), the actuator moves, causing the contacts to open (disconnect) and interrupt the electrical circuit. This action immediately shuts off the device or triggers a safety response.

Applications

Tip-over micro switches are used in various applications where safety is a concern due to the risk of tipping or tilting:

Heaters and Stoves: Portable electric heaters and stoves often use tip-over switches to prevent fires in case they are knocked over.

Home Appliances: Appliances like clothes irons, deep fryers, and rice cookers incorporate tip-over switches to enhance safety.

Industrial Equipment: Machinery and equipment in industrial settings may use these switches to prevent accidents and ensure safe operation.

Medical Devices: Certain medical equipment incorporates tip-over switches to safeguard against accidental tipping, which could compromise patient safety.

Advantages

Enhanced Safety: Tip-over switches significantly reduce the risk of fire, electrical shock, or mechanical injury by shutting down the device when it is not in the proper position.

Reliability: These switches are designed to operate consistently and accurately, providing dependable protection over long periods.

Versatility: Available in various designs to suit different types of devices and applications, from consumer electronics to heavy industrial machinery.

Selection Criteria

When selecting a tip-over micro switch, consider the following factors:

Tilt Angle Sensitivity: The specific angle at which the switch activates, ensuring it is appropriate for the intended application.

Electrical Ratings: Ensure the switch can handle the voltage and current requirements of the device it is protecting.

Environmental Durability: Consider the operating environment, including factors like temperature, humidity, and exposure to dust or chemicals, and select a switch with appropriate protection ratings.

Conclusion

The tip-over micro switch is a critical safety component used to protect against accidents and hazards associated with the tilting or tipping of electrical devices. By automatically shutting off power or triggering alarms when a device tips over, these switches help prevent fires, electrical shocks, and other dangerous situations. Their reliability, versatility, and ease of integration make them an essential part of safety design in various consumer and industrial applications.
