Miniature Snap Action Micro Switch
The 1A/3A 125V AC mini micro limit switches are designed for repeatability and enhanced product life,it was also called micro detector limit switch,the micro switch comes with 12.8*5.8*6.5mm outline
Description
Subminiature Snap-Action Standard Micro Switch
The 1A/3A 125V AC mini micro limit switches are designed for repeatability and enhanced product life,it was also called micro detector limit switch,the micro switch comes with 12.8*5.8*6.5mm outline,it rates with 1A/3A 125V AC,the contact resistance is 50mΩ Max and insulation resistance is 100mΩ min./ DC500V; it has multiple wire terminals and various levers or roller options,the mini size and snap action features make it easy to operating.
Merits of Snap into Micro Switch
1. Compact construction,tiny contact gap,features with snap-action,high sensitivity and micro actuation travel
2. Long life expectancy and stable reliability
3. Owing the global safety certification approvals
4. Full range of Connecting wire terminal
5. Equipped with kinds of operation levers
6. Spread applied for household appliance,electronics equipment,automation equipment,telecommunication devices,auto electronics,office equipment,instruments and apparatus as well as power tools fields.
Alternative Specifications
Electrical rating | 1A 125V AC 3A 125V AC |
Level Type | 1. No level pin plunger 2. Standard straight level 13.4mm 3. Roller level 15.6m 4. Short straight level 12mm 5. Long roller level 18mm |
Terminal Type | 1. Solder terminal 2. Straight PCB terminal 3. Left side PCB terminal 4. Right side PCB terminal 5. Long straight PCB terminal 6. PCB snap in(clip) terminal |
Operation force | Many types options |

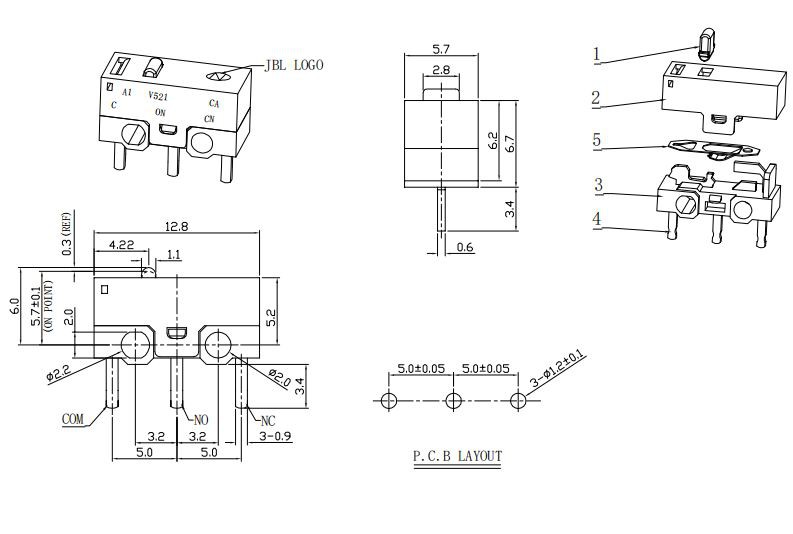

Drawing
FAQ
Q: When will you ship the goods out if i send payment now?
A: Usually,our lead time is 7 days after payment received.
Q:Do you support to order in mixture products?
A:Yes,if you can meet our MOQ for each items
Q: Do you do ODM/OEM services?
A: Yes, we have 9 years experience on ODM/ OEM services.
Q. What is the shipping cost?
A5. Depending upon the quantity and the destination
After sales
Excellent after-sales service will be provided by us to satisfy our customers,we keep consistent prompt reply and cooperation for customers’ questions.
