TS9 series Surface mount led tactile button
Nov 30, 2022

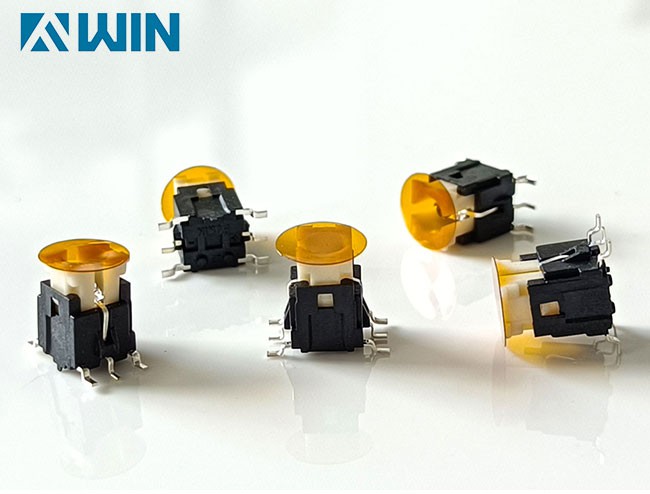

The TS9 series surface mount illuminated tact switches has 6*6mm base,it’s built in an LED indicator,the tiny SMD led tact switches has 5 led color options,we also provide with dual color LED.FWVIN TS9 series illuminated LED SMT tactile button are rated up to 500,000 electrical lifespans and it designed for easy actuation and high reliability in plenty of board mounted application fields.
Feature:
1.Low and high intensity LED lights options and there has 6 unique color.
2.The tact switch with integrated LED that save the board space
3.Tactile and audible feedback
4.Laser etch icons cap offer an convenient actuation and highlight the illumination effect.
Model: TS9 series
Circuit: SPST
Max current: 50mA
Max voltage: 12V DC
Dielectric voltage: 250V AC for 1 minute
Contact resistance: 100mΩ max (initial)
Insulation resistance: 100MΩ min
Operating force:160gf/ 250 gf
Total travel: 0.25 ±0.1mm
Life cycle:500,000 cycles min
Solder specifications: 260°C for 5 seconds
Function: momentary
Operating temperature: -20 to +70°C
