TS7 series SMD tactile switch with LED
Nov 30, 2022

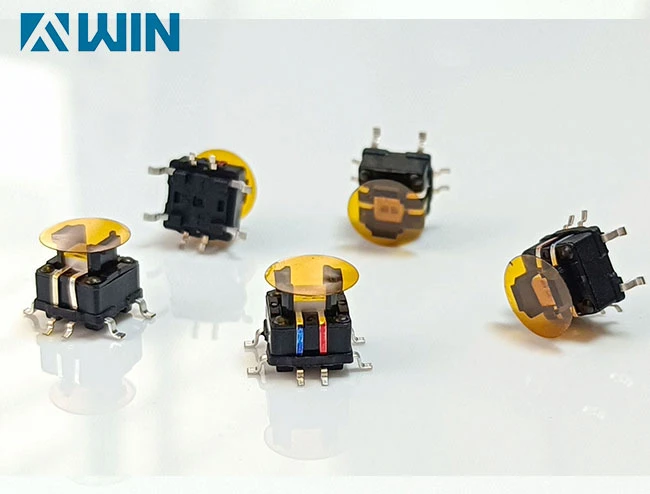

This is our TS7 series smd type illuminated tactile switch, the smd tactile switch with integrated LED light, the led is available with single and bi-color. TS7 series momentary smd tactile switch offers through hole and surface mount types.
Below is the specifications of TS7 series led tactile smd switch,
Circuit: SPST
Max current: 50mA
Max voltage: 12V DC
Dielectric voltage: 250V AC for 1 minute
Contact resistance: 100mΩ max (initial)
Insulation resistance: 100MΩ min
Operating force:160gf/ 250 gf
Total travel: 0.25 ±0.1mm
Life cycle:500,000 cycles min
Solder specifications: 260°C for 5 seconds
Function: momentary
Operating temperature: -20 to +70°C
