15x15mm illuminated push button switch
Dec 07, 2022

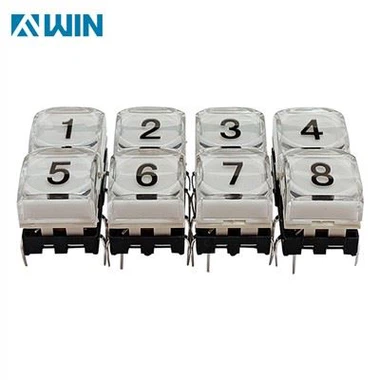

PB30 series is a square 15x15mm illuminated push button switch,it features Switch actuation is synced with contact timing, delivering color without delay simultaneous to actuating the device ,RGB LED with full color spectrum for unlimited, stable and consistent color options, long travel of 4.5mm makes the click hand feeling is more obvious. PB30A illuminated broadcasting button is available with momentary and latching models, the PB30B is only momentary.
PB30A series illuminated push button
Size：15x15x18.5mm
Rated：28VDC ,40mA
Contact Resistance：200mΩ（max）
Insulation Resistance:100MΩ（min）
Withstand Voltage：500VAC for 1 minute
Operation Force：200±100gf
Total Travel：2.2±0.2mm
Function：OFF-(ON) Momentary
Soldering Temperature：350℃ for 5 seconds
Using Temperature：-25℃ ~ 70℃
Life：2,000,000 cycles
PB30B series illuminated push button
Size：15x15x23mm
Rated：12VDC ,100mA
Contact Resistance：200mΩ（max）
Insulation Resistance:100MΩ（min）
Withstand Voltage：250VAC for 1 minute
Operation Force：250±100gf
Total Travel：4.5±0.2mm
Function：OFF-(ON) Momentary
Soldering Temperature：350℃ for 5 seconds
Using Temperature：-20℃ ~ 70℃
Life：1,000,000 cycles
