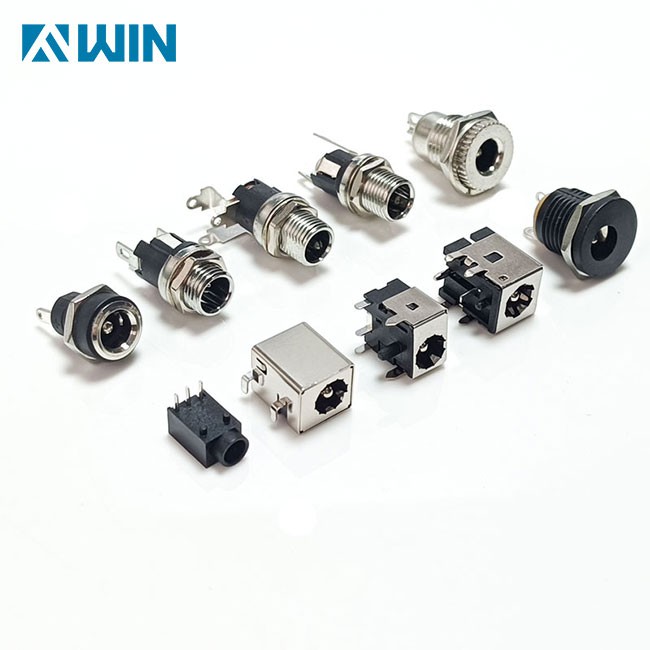

DC Power Jack Sockets
DC power jack sockets are versatile pieces of electronic hardware that find application across a wide range of devices, from consumer electronics to industrial machinery. Some of the major applications of these sockets include power supply for audio and video equipment, computer hardware,...
Description
DC power jack sockets are versatile pieces of electronic hardware that serve as critical power connection interfaces, finding widespread application across a broad spectrum of devices-from everyday consumer electronics to heavy-duty industrial machinery. Their adaptability to varying voltage and current requirements makes them indispensable in powering high-precision audio and video equipment, including home theater systems, professional stage mixers, and digital projectors, where stable power input directly ensures uninterrupted performance.
Specification
| Rated Voltage | 5V DC ~ 48V DC |
| Rated Current | 0.5A ~ 10A DC |
| Contact Resistance | ≤ 50 mΩ |
| Insulation Resistance | ≥ 100 MΩ (at 500V DC) |
| Dielectric Withstanding Voltage | 1,000V AC ~ 2,000V AC (1 minute) |
| Polarity Configuration | Center-positive / Center-negative |
| Insertion/Extraction Force | Insertion: 5N ~ 20N; Extraction: 3N ~ 15N |
| Mechanical Life | ≥ 5,000 insertion/extraction cycles |
Female DC Jack Connector Selling Points
Lorem ipsum dolor sit amet, consectetur adipiscing slit. Nunc blandit dui eget ipsum pulvinar tempor. In laoreet elit sodales, finibs lorem nec, rutrum ipsum.
Uncompromising Quality Assuranc
Equipped with a full set of precision machining and testing equipment. From component processing to finished product delivery, every production procedure undergoes automated inspection.
Flexible Customization Capability
Leveraging CNC mold engraving machines and customized injection molding production lines, we can rapidly respond to non-standard DC jack connector requirement
High-Efficiency Delivery Service
Our fully automated assembly lines achieve a daily production capacity of 50,000 units. Combined with an intelligent warehousing system, we maintain sufficient stock for standard DC jack connector
Stable Capacity
Boasts superior wear resistance & vibration resistance, with a wide operating temperature range of -40℃ to 85℃, ideal for both indoor precision devices & outdoor rugged applications.
Why us
why choose us
elivery Efficiency Statement
Leveraging CNC mold engraving machines and customized injection molding production lines, we can rapidly respond to non-standard switch requirements. The lead time from mold development to sample delivery is only 7–15 days, fulfilling your personalized product design needs.
Delivery Efficiency Statement
Our fully automated assembly lines achieve a daily production capacity of 50,000 units. Combined with an intelligent warehousing system, we maintain sufficient stock for standard models. Bulk orders can be arranged for shipment within 72 hours, significantly shortening your procurement cycle.
FAQ
Q1: What specifications should I check to ensure the DC power input jack matches my device?
A: The core matching specifications include DC voltage rating , current rating , pin polarity , and physical size (e.g., 2.1×5.5mm, 2.5×5.5mm, the common standard sizes for consumer and industrial devices).
Q2: How to confirm the polarity of a DC power jac
A: Check the product datasheet-common polarities are center-positive (most used) or center-negative; reverse polarity may damage connected devices.
Q: What is the lead time for bulk orders of DC power jacks?
A: For standard models, lead time is 3–7 working days; custom models take 15–25 working days, depending on the customization complexity.
Q5: What materials are DC power jacks made of?
A: Insulators use heat-resistant PC/PA66 (UL94 V-0); contacts adopt brass with gold/silver plating for low contact resistance and oxidation resistance.
Q6: What is the mechanical lifespan of a DC power jack?
A: Standard models endure 5,000–10,000 insertion/extraction cycles; industrial-grade versions support 30,000+ cycles for frequent-use scenarios.
Our Exhibitions
We've take participated in Electronica China in 2020 and 2021at Shanghai,we showed our illuminated tact switch and led push button switch for customers and got good reputation from them.
2025shanghai2025 electronica china
Electronics switch and connector Factory in China
FVWIN ELECTRONICS is a globally renowned leader in designing and manufacturing premium electrical components. It supplies top-tier tact switches, push button switches, and high-precision connectors for pro AV, telecommunications, and consumer electronics markets in the Americas and Europe. A trusted partner of industry pioneers, it provides components with superior functionality, aesthetic versatility, and uncompromising quality.
Hot Tags: dc power jack sockets, China, suppliers, manufacturers, factory, customized, wholesale, for sale, made in China
