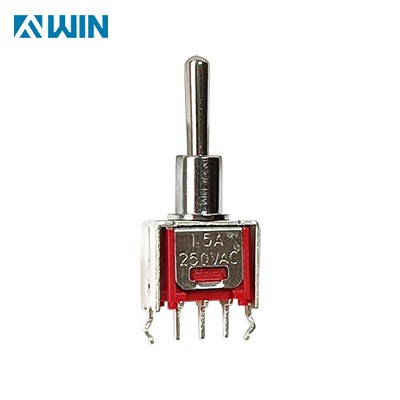

Sub-Miniature Toggle Switches

The TG series of sub-miniature toggle switches from FVWIN are single or double pole switches with double-throw actuation and maintained or momentary actions.

The TG series comes with a option of straight or 90° angled PC thru-hole terminals , solder lugs terminations.

The toggle switch’s electrically rated to 3A at 120VAC/28VDC or 1A at 250VAC with silver/gold over silver contacts, or low level at 0.4VA at 20VAC/DC with gold contacts. The TG series is compatible with both manual and wave soldering, has a mechanical life of 30,000 cycles and a variety of options for actuators and bushing styles.

Specifications:

Mechanical Life 30,000 Cycles

Operation SPDT or DPDT

Max Voltage 250VAC (@1A)

Max Current 3A (@120VAC/28VDC)

Operating Temperature -40C to +85°C

Product Views

Applications

The TG series miniature toggle switch is ideal for applications such as Telecommunications, Instrumentation, Networking Equipment, Computer and Server Equipment, Medical Devices and Audio-Visual Equipment.
