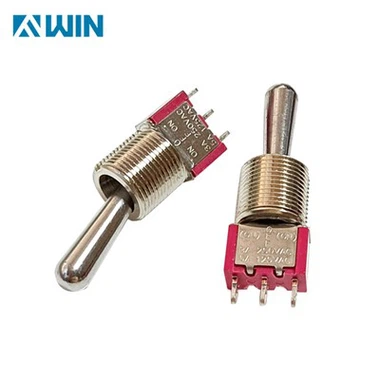

On On Mini Toggle Switch
on on mini toggle switch The on-on mini toggle switch is well suited to moderate-duty commercial applications, this miniature toggle switch is a variant of a regular electrical switch it is commonly used for opening and closing electrical circuits. It can be panel mounted and is often used on...
Description
on on mini toggle switch
The on-on mini toggle switch is well suited to moderate-duty commercial applications, this miniature toggle switch is a variant of a regular electrical switch it is commonly used for opening and closing electrical circuits. It can be panel mounted and is often used on PCB.
The single pole double throw (SPDT) latching switch features movable contacts made from silver-plated brass, with a brass actuator, diallyl phthalate case and stainless steel housing. The ON-ON two position toggle switch lets the toggle to latch on in either of the ON positions, while the latching mechanism maintains the switch in place.
Features and Benefits
• Latching toggle switch and SPDT contact configuration,PCB type terminal
• Chromium-plated brass actuator and Silver-plated brass contact material
• Panel mount,Panel cut out diameter of 6.35 mm
• Actuator length of 10.41 mm
Specification
|
Contact Rating: 5A @125 VAC Electrical Life: 50,000 make and break cycles at full load Contact Resistance: 10 mΩ max. initial @2-4 VDC,100 mA Insulation Resistance: 1,000 MΩ min. Dielectric Strength: 1,500 V RMS @ sea level. Operating Temperature: -30°C to 85°C |
|
Materials |
|
CASE: diallyl phthalate ( DAP ) TOGGLE HANDLE: Copper alloy, chrome plated BUSHING: Copper alloy, nickel plated HOUSING: Stainless Steel CONTACT & TERMINAL: copper alloy, silver plated |
Dimension
