Waterproof Tact Switch With Silicone Rubber
It's miniature tactile button switch with blue silicone rubber button,the silicone can reduce the noise when you press the tact switch,it's surface mount type mount way
Description

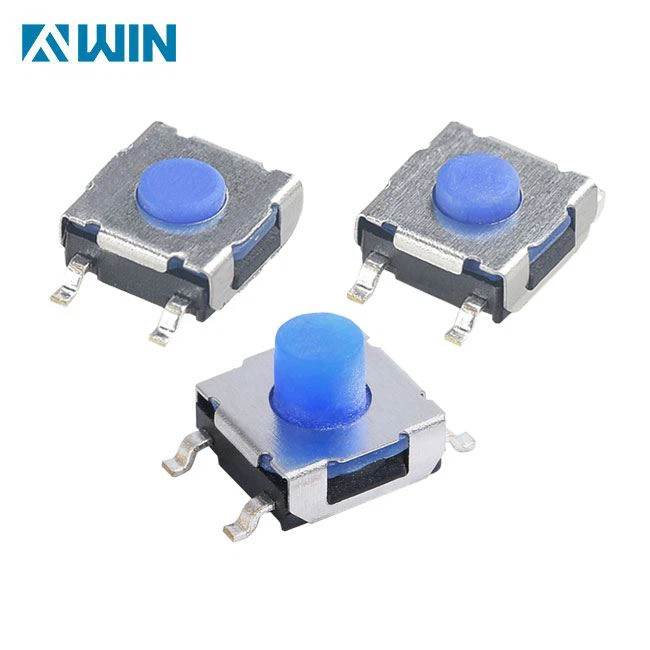

Blue Silicone Rubber 6.2x6.2mm SMT Waterproof Tact Switch
It's miniature tactile button switch with blue silicone rubber button,the silicone can reduce the noise when you press the tact switch,it's surface mount type mount way,it's packed with loose or tape ways,the waterproof silicone surface mount tactile switch is spread used to small home appliance,digital product,wearable product and office equipment as well as medical device.
Product Specification
Product Type:6.2x6.2MM silicone rubber
Rubber Color:Blue
Dimension:6.2x6.3MM
Rated:DC12V 0.5mA
Operation Force:180-250gf
Package:loose or tape method
Product Display
Specification
2.6. DURABILITY
2.6.1 | Operation life | Measurement shall be made following the test set forth below: DC 12V, 50 mA resistance load, Rate of operation:60 times/min.; Operating Force：1.5OF; Average fault-free life：300,000 cycles | Contact resistance: ≤200mΩ Contact bounce: ≤10ms Operating Force: initial value±30% |
2.6.2 | Vibration | Measurement shall be made following the test set forth below: 1) Vibration frequency range: 10Hz to 55Hz to 10Hz; 2) Amplitude: 1.5mm; 3) Direction of vibration: three mutually perpendicular direction including the direction of stem travel 4) Duration: Each 2hours. | |
2.6.3 | Operation Force | The switch is placed perpendicular to the direction of the operation, gradually force in key top center of switch, measure maximum intensity when it conducted required. | 260±70gf |
2.6.4 | Over Travel | Switch at the vertical operating orientation placement, with a force equal to 2 times according to the static load applied on the switch button the top center, measure the top moving distance | 0.35+0.2/-0.1mm |
2.6.5 | Return force | The sample switch is installed such that the direction of switch operation is vertical and upon depressing the stem in its center to the whole travel distance, the force of the stem to return to its free position shall be measured. | 50gf.min. |
2.6.6 | Stop strength | Placing the switch such that the direction of switch operation is vertical, and then a static load of 30N shall be applied in the direction of stem operation for a period of 1 min. | There shall be no sign of damage mechanically and electrically. |
2.6.7 | Stem strength | Placing the switch such that the direction of switch operation is vertical, and then the maximum force to withstand a pull applied opposite to the direction of stem operation shall be measured. | 1Kgf.min. |
Package
1. 500pcs/1000pcs of PE bag or anti-static bag inside package
2. PE bag,anti-static bag,reel packing,Skin packing
