Micro Illuminated Tact Switch

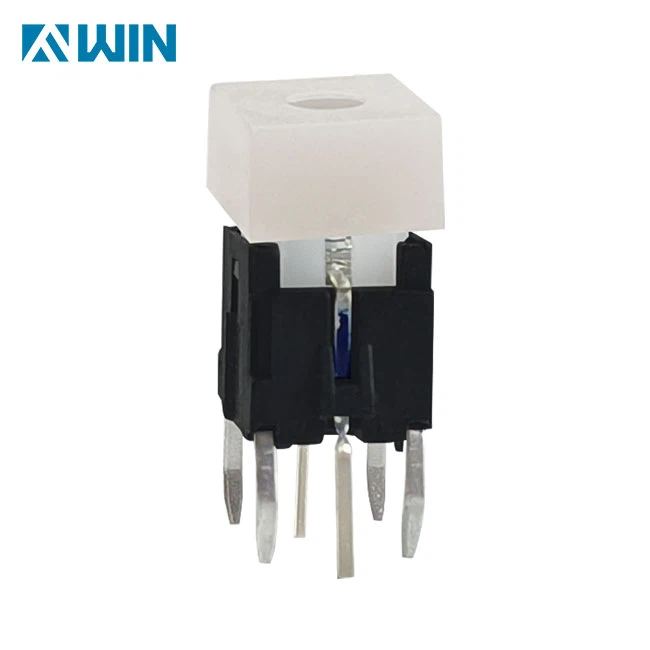

This is illuminated mini tact switch that offers several LED color options, the cap can be chose with black and white color. The cap with a hole in the center, that design can be transmit the light more better, the illuminated tactile switches is usually applied to audio equipment.
Description
This Micro Illuminated Tact Switch features multiple LED color choices, paired with a black or white cap option. The cap's center-hole design enhances light transmittance, perfectly suiting audio equipment setups.

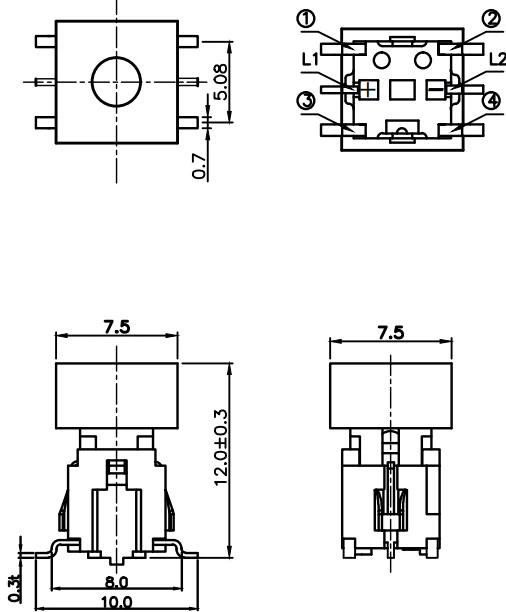

Though the datasheet includes a surface-mount (SMD) model, we suggest selecting the through-hole version for practical use. The SMD type is not suited for reflow soldering; if you do choose this variant, manual soldering is required for proper assembly.
Purchasing Guide
1. If you can not find the desire products in the web or E-catalog, please contact us at any time, the Email and Skype is favorable.
2. If you wanna design the product, you can provide the drawing or provide your detail request, we can finish it.
3. The customized mould will be finished during 35 workdays, and samples will be made in 7 workdays.
Our certifications
Soldering Tips
Reflow soldering temperature needs to be controlled within 245℃, or the high temperature will damage the led pin and lead to no function when the you push the button.
And you need to welding it by manual operation, now we are looking for the new material to substitute it, it'll be finished in 2022
FAQ
Q: How to test the functionality of an LED tact switch after installation?
A: First, power on the LED circuit to check if the light is stable and uniform. Then, press the switch repeatedly to verify that the contact on-off status is consistent and the LED does not flicker abnormally during actuation.
Q: What causes the LED to flicker or not light up?
A: Common causes include reverse LED polarity, insufficient supply voltage, loose soldering joints, or damage to the LED chip from static electricity or overcurrent. Checking the circuit wiring and soldering quality is the first troubleshooting step.
Q: Do you provide samples for testing before mass production?
A: Yes. We offer free samples (up to 5 pieces per model) for customer testing and verification. Sample delivery takes 3–5 working days.
Q: What is the lead time for mass production orders?
A: The standard lead time is 15–25 working days for regular models. For customized models or large orders (over 100,000 pieces), the lead time may extend to 30–45 working days.
Q: What is your after-sales service policy for defective products?
A: We provide a 12-month warranty for all LED tact switches. If defective products are found due to manufacturing quality issues, we will provide free replacement or refund after quality inspection and confirmation.
