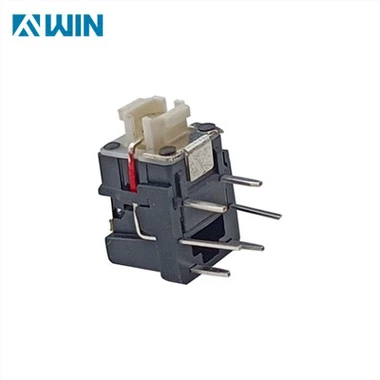

This is a push button switch with illuminated LED light measures 7.5x8.5x10mm, it’s latching push button;that’s different with momentary switch.when you push down the top button, it’ll stay at the position, if you operate it again, it’ll back to normal position;the momentary means if you press it and release your hand, it’ll return to original position.

The TS85 series of illuminated tact switches from FVWIN are illuminated push button switches with DPDT operation and latching or momentary actions. Electrically rated to 100mA at 30VDC with an electrical life of 10, 000 cycles and an operating force of 250gf.

The latching illuminated tactile switch offers red, green, yellow, white and blue led options,

Besides, the latching type is common model, if you wanna order the momentary type, the price and delivery time is rather high and long than normal.

Product Parameter

1.RATING: 30VDC 0.1A

2.CONTACT RESISTANCE: 50m Max

3.INSULATION RESISTANCE: 100M 500VDC FOR 1MIN

4.DIELECTRIC STRENGTH: 500VAC(50/60Hz) FOR1MIN

5.LIFE TEST:10, 000 CYCLES

6.OPERATION FORCE:A--150±100gf(Momentary)

B--250±100gf(Push to lock)

7.TRAVEL:FULL:1.6±0.4mm LOCK:1.4±0.4mm

Applications

A broad applications for control and automation, embedded system design, measurement devices, micro controllers, mixer, vision processors as well as computer vision solutions.
