The TS12 series thru-hole tactile switch offers reliable dome contact technology with strong tactile/audible feedback and multiple operating force options.and it has 12*12*7.3MM profile, the operation force is 260gf. You can choose between gold or silver contact material, plus multiple cap options for certain models.

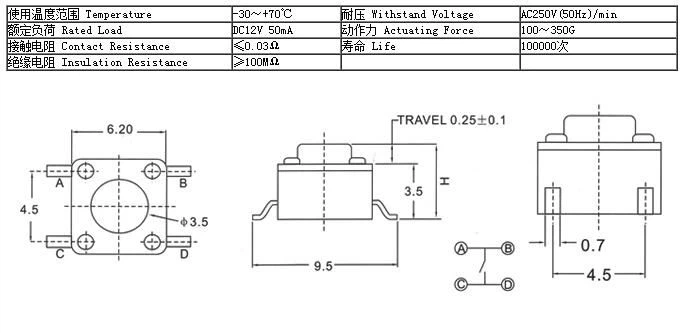

Specifications

Rated Load:12VDV 50mA

Actuation Force:100-350gf

Insulation Resistance:≥100MΩ

Life Span:100, 000 cycles

Tact Switch Using Attention

1. Please consult us in advance when considering to clear tact switches.

2. Do not immerse soldering flux into illuminated tact switches.

3. Do not paint soldering flux on the surface of switch terminals and other parts in PCB board, it’ll

4. The second welding should be done after switches return to normal temperature.

5. If you insist on choosing the surface mount type led tactile switches, please soldering it as our specification and strictly control the welding temperature.

Key Selling points

1. Flexible design, the rich type is easy to actuator from different angle

2. Multiple operation force with 100gf, 160gf, 350gf, 500gf

3. Short travel:0.10mm-0.25mm/Medium travel:0.25mm-1.0mm /Long travel:1.0mm-1.3mm

4. Long life expectancy and superior heat resistance, after reflow soldering, the tact switch body won’t destroy and the design protect from immersing soldering flux, consist hand feeling.

5. Inside the imported stainless steel dome to ensure the low contact resistance and good hand feeling as well as long lifespan.

FAQ

Q: Do you do ODM/OEM services?

A: Yes, we have 5 years experience on ODM/ OEM services.

Q. How about the quality?

A. All our products are 100% tested before delivery. Durable quality is guaranteed.

Q: Can you provide OEM customized cap for led tact switch?

A: Sure.

Q: Are your a trading company or factory?
A: We are the manufacturer, we establish in 2013, have more than 10 years experiences in illuminated tact switches field.
