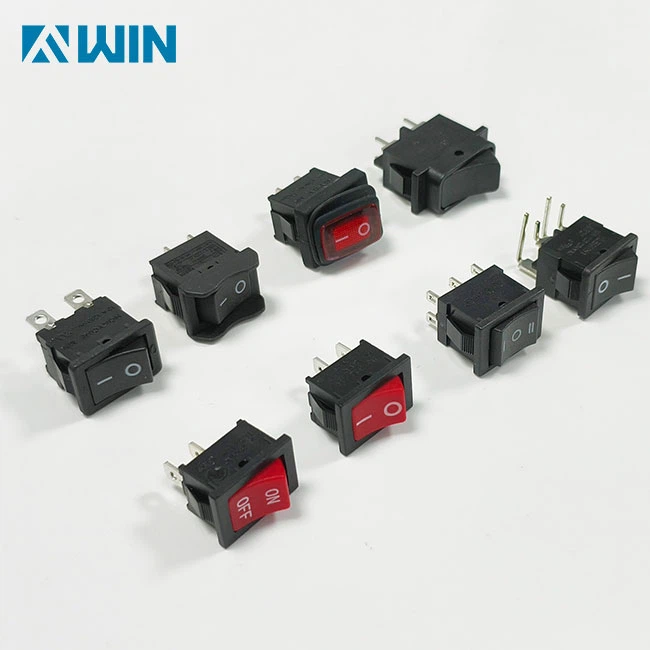

Rocker Switch On Off On
The rocker switch "on-off-on" is a versatile electrical switch that allows users to control the flow of electricity in a circuit by toggling between three positions: "on," "off," and "on."
Description
Product Brief
The rocker switch "on-off-on" is a versatile electrical switch that allows users to control the flow of electricity in a circuit by toggling between three positions: "on," "off," and "on." This type of switch features a rocker mechanism that can be moved to the left or right to select the desired position. Here's a detailed description of the rocker switch "on-off-on," including its construction, operation, applications, and benefits:
Rocker Mechanism:
The rocker switch "on-off-on" consists of a rocker mechanism housed within a durable casing, typically made of plastic or metal.
The rocker mechanism is designed to pivot smoothly between the three positions: "on," "off," and "on," providing tactile feedback to the user.
Contacts and Terminals:
Inside the switch housing, there are electrical contacts and terminals responsible for making or breaking the electrical connection.
The switch has three sets of contacts: one for each position ("on," "off," and "on"). Each set of contacts is connected to external terminals for wiring connections.
Actuator:
The actuator, or rocker paddle, protrudes from the switch housing and serves as the user interface for toggling between the different positions.
The actuator is ergonomically designed for easy operation, allowing users to press it to the left or right to switch between positions.
Product Specifications
"On" Position:
When the rocker switch is moved to one side, it closes the circuit and allows electricity to flow, turning the connected device or circuit "on."
In the case of the "on-off-on" switch, moving the rocker to one side activates one set of contacts, establishing a connection between the corresponding terminals.
"Off" Position:
When the rocker switch is centered or in the neutral position, it opens the circuit and interrupts the flow of electricity, turning the connected device or circuit "off."
In this position, all sets of contacts are open, and there is no electrical connection between the terminals.
"On" Position (Opposite Side):
Moving the rocker switch to the opposite side activates the other set of contacts, establishing a connection between the corresponding terminals and turning the connected device or circuit "on" again.
Hot-selling Items
Applications
Audio Equipment
Video Equipments
Medical Equipment
Smart Door Lock
Control-equipment
Security Device
