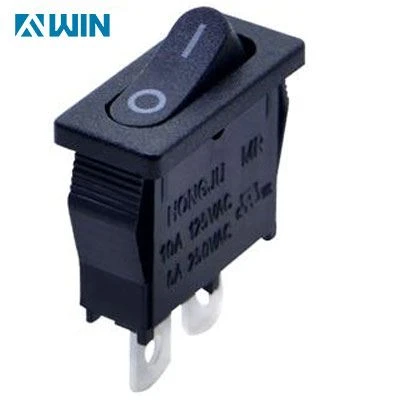

ON OFF 21*10MM Rocker Switch
This is cut out size 21*9.5mm rocker switches, it’s a on-off switch.the color of operation button is available with red, black and white as well as green.
Description
This is cut out size 21*9.5mm rocker switches, it’s a on-off switch.the color of operation button is available with red, black and white as well as green.
Rocker switch is a mini high power capacity power switch for home appliance and office equipment, compare with other switch, the operation force is heavy;the version of rocker switch is also applied to different situations.
Parameters
Product Model: | MR-2-110-C5N-BR | Electrical Life : | 10, 000 cycles typical |
Electrical Ratings: | 10A 125VAC, 6A 250VAC | Dielectric Strength: | 1500Vrms min
|
Contact Resistance: | < 20 mΩ max initial @ 2-4VDC, 100mA | Insulation Resistance: | > 100MΩ min |
Temperature: | -40°C to 85°C | Operating Temperature: | -40°C to 85°C |
Certifications: | UL.CQC.VDE, ROHS | Function: | ON-OFF |
Cut Out | 21*9.5mm | Button Color | Red, white, black |
Product Dimension
Application Fields
The rocker switch is widely used to Water dispenser, running machine, computer speaker box, battery car, motorcycle, ion TV, coffee pot, row plug, audio equipment, massage machine, basically be what household electric appliance and so on uses more.
Our Advantages
1) Accept the trial order and mixture order,
2) Our MOQ is less than same industry,
3) We can provide the customized service for customers if you can not find the suitable products.
4) The samples is available.
About FVWIN
For 9 years, FVWIN has been at the forefront of developing electronics switches technology with manufacturing the illuminated tact switches, led push button switches, toggle switches, plastic products and others.
Hot Tags: on off 21*10mm rocker switch, China, suppliers, manufacturers, factory, customized, wholesale, for sale, made in China, ON OFF Rocker Switch, Panel Mount Rocker Switch, Illuminated Panel Mount Rocker Switch, SPST 15 10 Rocker Switch, 21 15 Panel Mount Rocker Switch, ON OFF ON Panel Mount Rocker Switch
