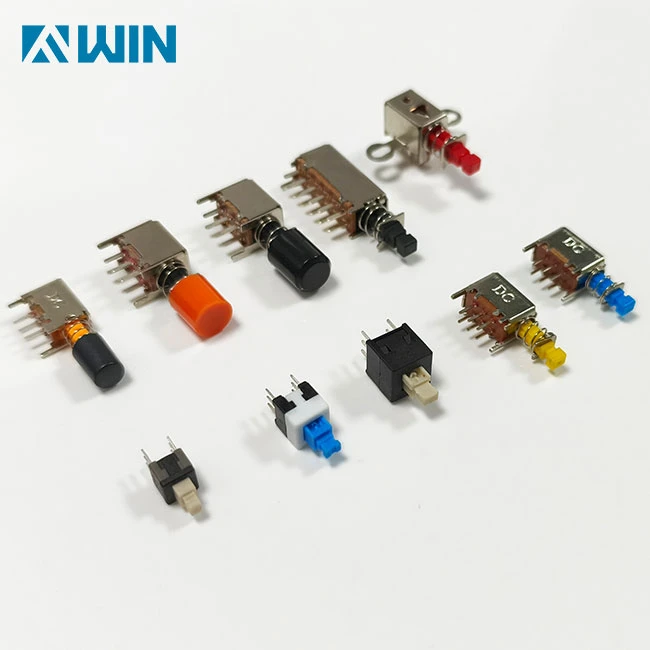

Latching Push Button
A latching push button, also known as a latching switch or latching pushbutton switch, is a type of electrical switch that maintains its state after being actuated. Unlike momentary switches that return to their original position when released, latching push buttons remain in...
Description
Product Brief
A latching push button, also known as a latching switch or latching pushbutton switch, is a type of electrical switch that maintains its state after being actuated. Unlike momentary switches that return to their original position when released, latching push buttons remain in either an "on" or "off" position until manually toggled again.
latching push buttons are essential components in a wide range of applications where stable, manual control of electrical circuits is required. With their durable construction, reliable operation, and versatile applications, they provide users with a convenient and efficient means of controlling devices and equipment.
Latching push buttons have two stable states: "on" and "off." When the actuator is pressed or toggled, it locks into one of these states until manually toggled again.
Pressing the actuator once toggles the switch to the "on" state, where it remains until pressed again to toggle back to the "off" state.
Product Constructions
Circuit: SPST/DPDT
Rating: 0.1A DC30V
Insulation Resistance: ≥100MΩ
Dielectric Strength: AC250V 50Hz /min
Contact Resistance: ≤50MΩ
Operating Temperature: -25℃~ + 65℃
Lifetime: 100000 Cycles
Operating Force: 160 ± 80gf
Temperature: - 40~70°C
Pin Number : 6
Function: momentary/latching
Product Category: push button switch
Actuator
The actuator is the part of the latching push button that users physically interact with. It typically protrudes from the switch housing and is designed to be pressed or toggled to actuate the switch.
Actuators come in various shapes, sizes, and materials, such as plastic, metal, or rubber, to accommodate different applications and user preferences.
Switch Mechanism
Latching push buttons contain a switch mechanism that maintains its position after being actuated. This mechanism typically consists of a locking mechanism, such as a spring-loaded latch or toggle, that holds the switch in its current state until manually reset.
The switch mechanism may include internal contacts and terminals that make or break electrical connections when the switch is toggled.
Housing
The housing of a latching push button encloses the internal components and provides structural support and protection.
Housings are commonly made of durable materials like plastic or metal and may feature mounting options such as screw terminals, snap-in mounts, or PCB (Printed Circuit Board) mounts.
Hot-selling Items
Product Views
Packing & Shipping
pACKING
SMT Type Tactile Switches 500 pc(s) Tape on Full reel
Delivery is 15-20 workdays upon confirmations of order and payment, whichever is later. If we have stock, it will be shipped during 3 workdays.
PE bag packing way,1000pcs/bag,10bag/carton
Blister box/ plastic conta packing way,250pcs/box.50 box/carton
Anti-static bag packing way,1000pcs/bag,10 bag/carton
Tray/Carton box
Tape&Reel packing
Following to the requirements of customers
SHIPPING mETHODS
1.We will ship the goods after the payment is reached;
2.We can ship to you by UPS/DHL/TNT/EMS/FedEx. Please contact us directly and we will use your preferred ways. For the Countries & Regions where EMS cannot deliver,please choose other shipping ways;
3.Goods will be sent out soon, within 1-3 days once we have stocks;
4.We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service;
5.Any import fees or charges are the buyer's responsibility
