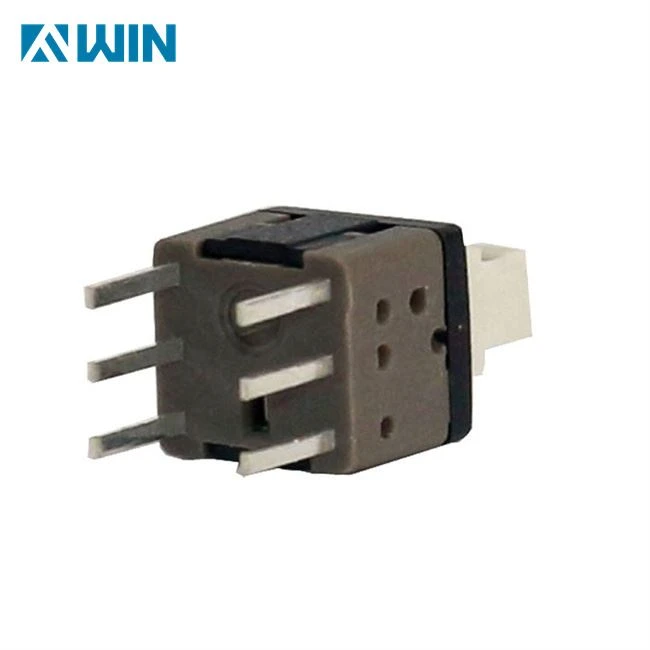

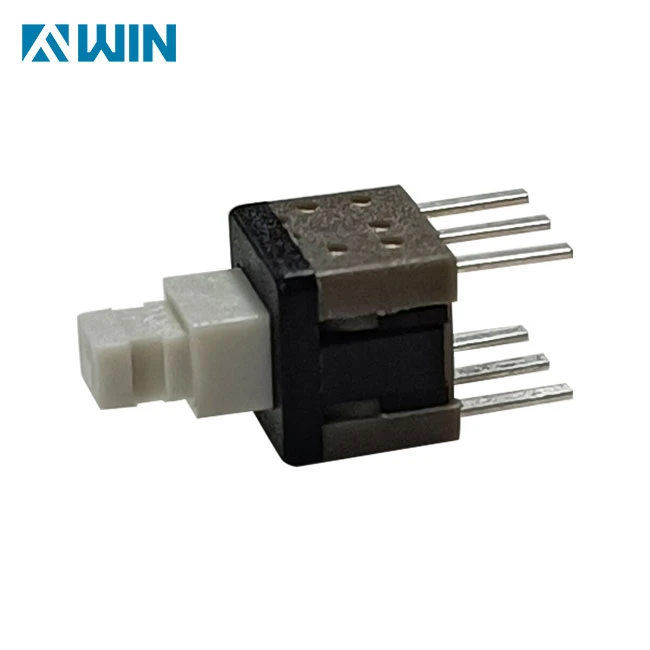

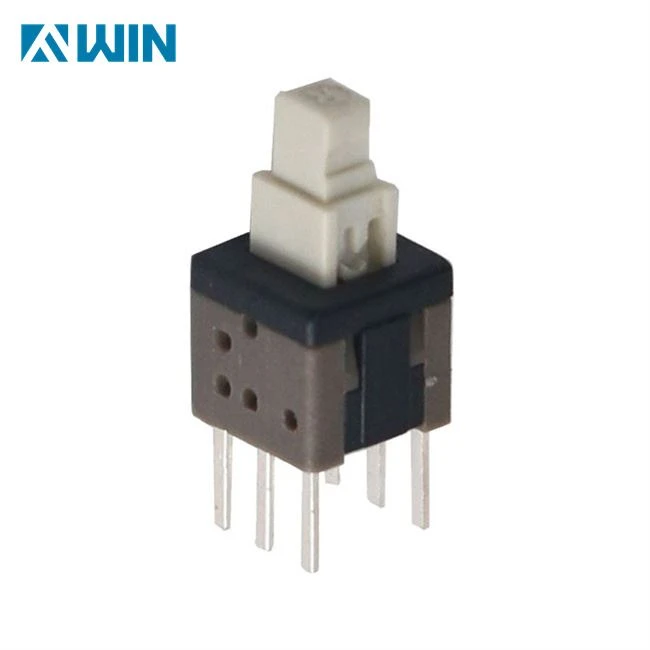

5.8*5.8 Push Button Switch

This compact size of 6 pins through hole Push Button Switch with Self Locking or momentary alternative,it’s rated 30VDC 0.1A and rated up to 10,000 cycles life expectancy.

This type of 5.8mm push button switch has through hole and surface mount choices,you can directly solder it into the PCB board.it has a variety applications for multi-meters and toy control devices as well as power control button.If you wanna the cap for it,we can make it for you.

Key Specifications/Special Features:

● Contact resistance: ≤100mΩ

● Insulation Resistance: ≥100MΩ

● Rating: DC30V 0.1A

● Life: 10,000 Cycles

● Operating Force: 250±80 gf

● Operating Temperature Range: -40℃~85℃

● Storage Temperature Range: -30℃~80℃

Features:

1. Micro switch with lock or non-lock.

2. Compact size and terminals are insert molded for surface mountable on P.C.B..

3. Tactile audible feeling reaction and 2P2T type be used.

Applications Fields

6 pin Push button switches are suited for tele-com and network infrastructure, server and storage reset buttons, medical monitoring equipment, and electronic panels,multi-meters,electronics products.

What’s difference of latching push button switch and tact switch?

Actually we introduce the latching switch and tact switch of different function,latching is lock the inner part to keep connected(ON or OFF),tactile indicates the force of operating to the switch;in generally,the mechanical switch can be divided into knob,rocker,push,
