16mm Momentary Push Button
PB02 series is a 16mm Momentary OFF-MOM 2Pin single-pole single-throw (SPST) Normally Open Round Push Button Switch3A 250VAC, 6A 125VAC. PB02 series two pin push button switch is suitable for panel mounting the switch comes with a locking nut making it ideal for a range of applications. PB02...
Description
PB02 series is a 16mm Momentary OFF-MOM 2Pin single-pole single-throw (SPST) Normally Open Round Push Button Switch3A 250VAC, 6A 125VAC.
PB02 series two pin push button switch is suitable for panel mounting the switch comes with a locking nut making it ideal for a range of applications.
PB02 series momentary push button switch is widely used in home appliances, electronic equipment, communications and for automotive purposes.
Specifications
Panel Cut-Out:16mm
MPN:PB02-PMR
Dielectric Strength:1000VAC 1 Minute
Mechanical Life:50000 Cycles Min
Insulation Resistance :500VDC 100MΩ Min
Electrical Life:10000 Cycles Min
Operating Force:250gf
Contact Resistance:50mΩ Max
Features:
Switch without lock / reset (momentary button switch), function OFF-(ON), normal open contacts
PB02 series push button switch could be made in different color of button, Red button / Green button / Blue button / Yellow button / Black button / White button
16mm panel mount cut-out size

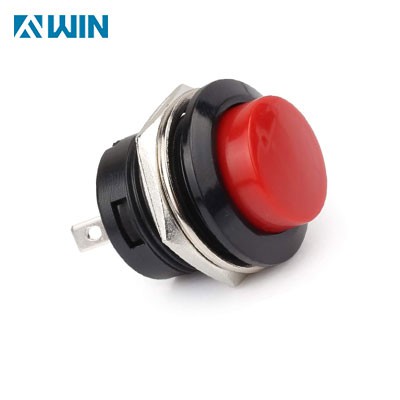

Product Views

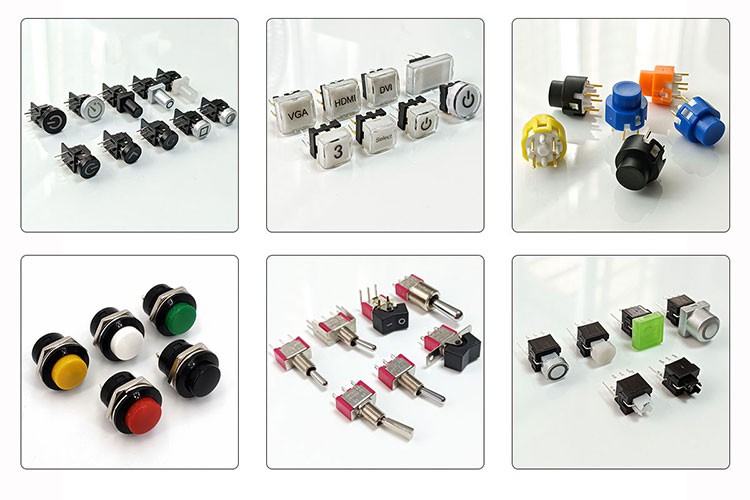

Hot-selling Items
