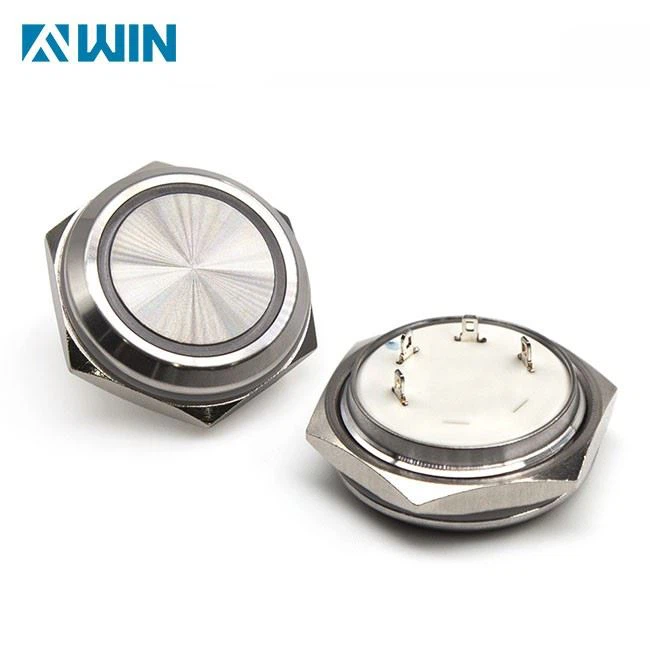

30MM Metal Push Button

This is 30mm stainless steel metal push button switch, with low profile and flat round instantaneous/lock operation type, IP65 waterproof,the total height of 12.4mm.and drill out size of 30MM,the actuator is available in flat head,high head and domed head and offers LED illumination or without LED illumination choice.the anti vandal button switch makes them widely visible on the control panel.the big contact surface makes it easy to operate.

It is a tactile metal push-button switch,normally open function,the mounting part has waterproof level,the metal button is matched with screw nut and waterproof gasket.

Specifications

Mounting hole size: Ø30mm
Head shape: flat round ring with lamp
Switch rating: 5A/250V AC
Switch combination: 1NO 1NC / 2NO 2NC
Operation type: self-duplex/self-locking type
Lamp bead color: red/green/yellow/orange/blue/white (bi-color LED optional)
Shell material: stainless steel
Protection grade: IP65, IK10

Rated: 50mA 48V DC

Product Display

Dimension
